Flux Boxes (Set of 6) Version 3

£1,150.00

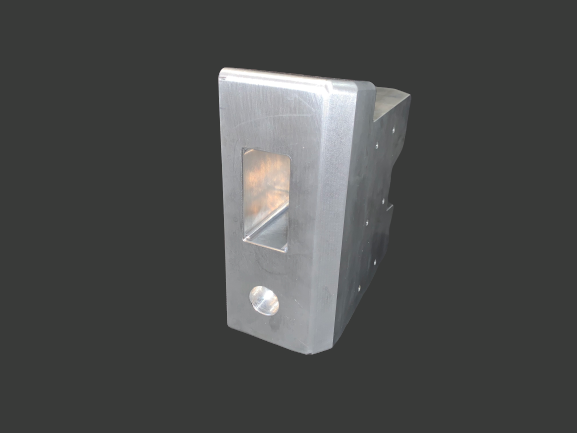

Our Flux Boxes are precisely CNC machined from solid blocks of Aluminium to produce a flux box that is not only strong, but also offers much better value for money than its resin counterparts.

Made to order (60-90 days)

SKU: fluxboxes Category: Tags: , , , ,

Description

Disappointed by the resin casts offered by other companies, we set out to design and build a more affordable and robust Flux Box for your Time Machine. By using a large collection of images and measurements taken from the original “A-Car” Time Machine, we can confidently say that every measurement curve and angle is exactly as it should be!

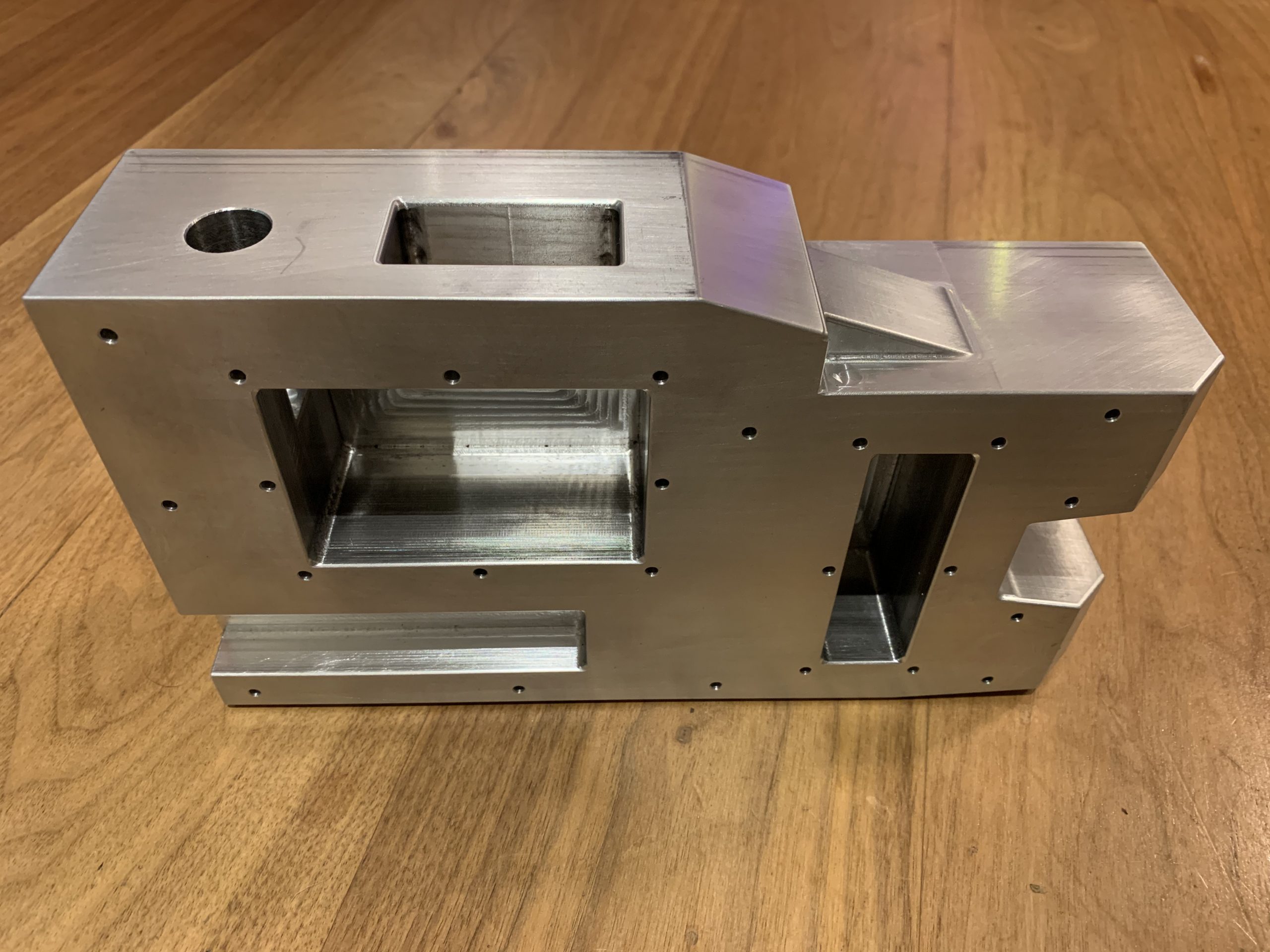

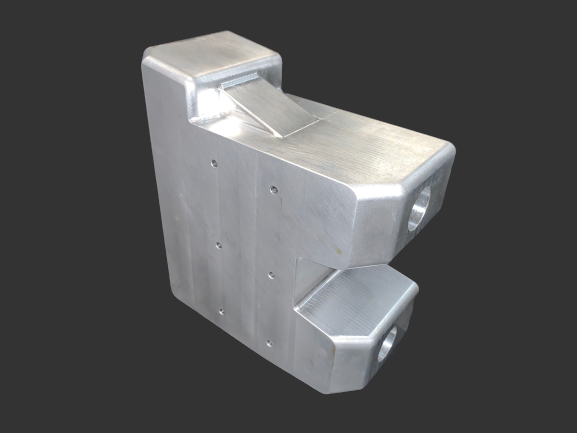

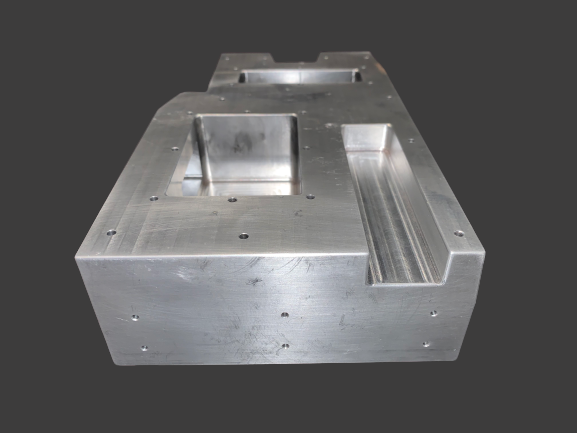

Our designs are then precisely CNC machined from solid blocks of Aluminium to produce a flux box that is not only strong, but also offers much better value for money than its resin counterparts. Unlike other Flux Boxes, we have also pre-drilled each hole to 3mm allowing for it to be tapped to either metric or imperial bolt sizes (depending on your location in the world), and have included the correct sized holes for Mole Richardson plugs and Skintop cable glands.

The flux band holes on these boxes are drilled out to 20mm, allowing you to use  3/4″ or 19-20mm flux band tubing.

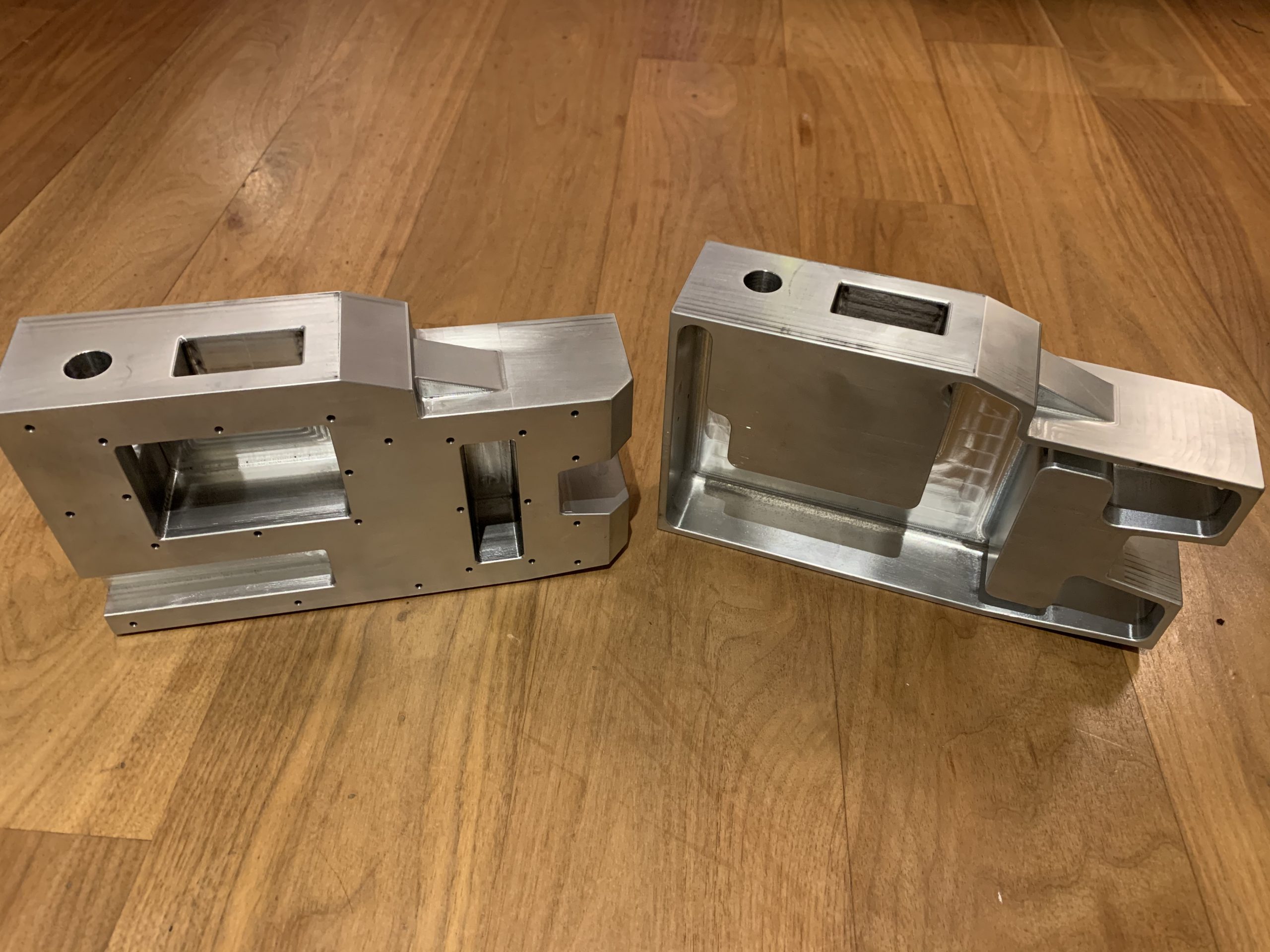

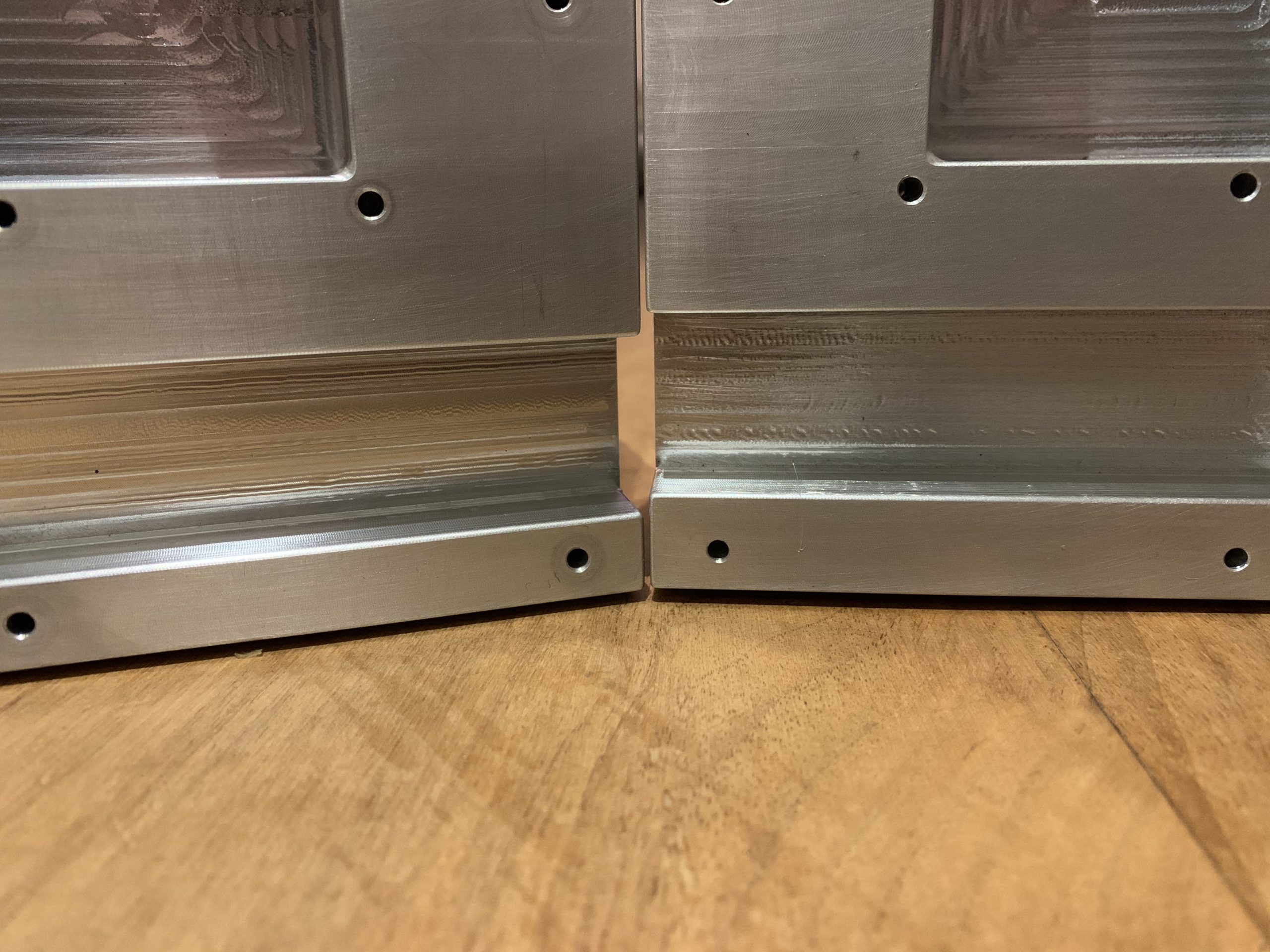

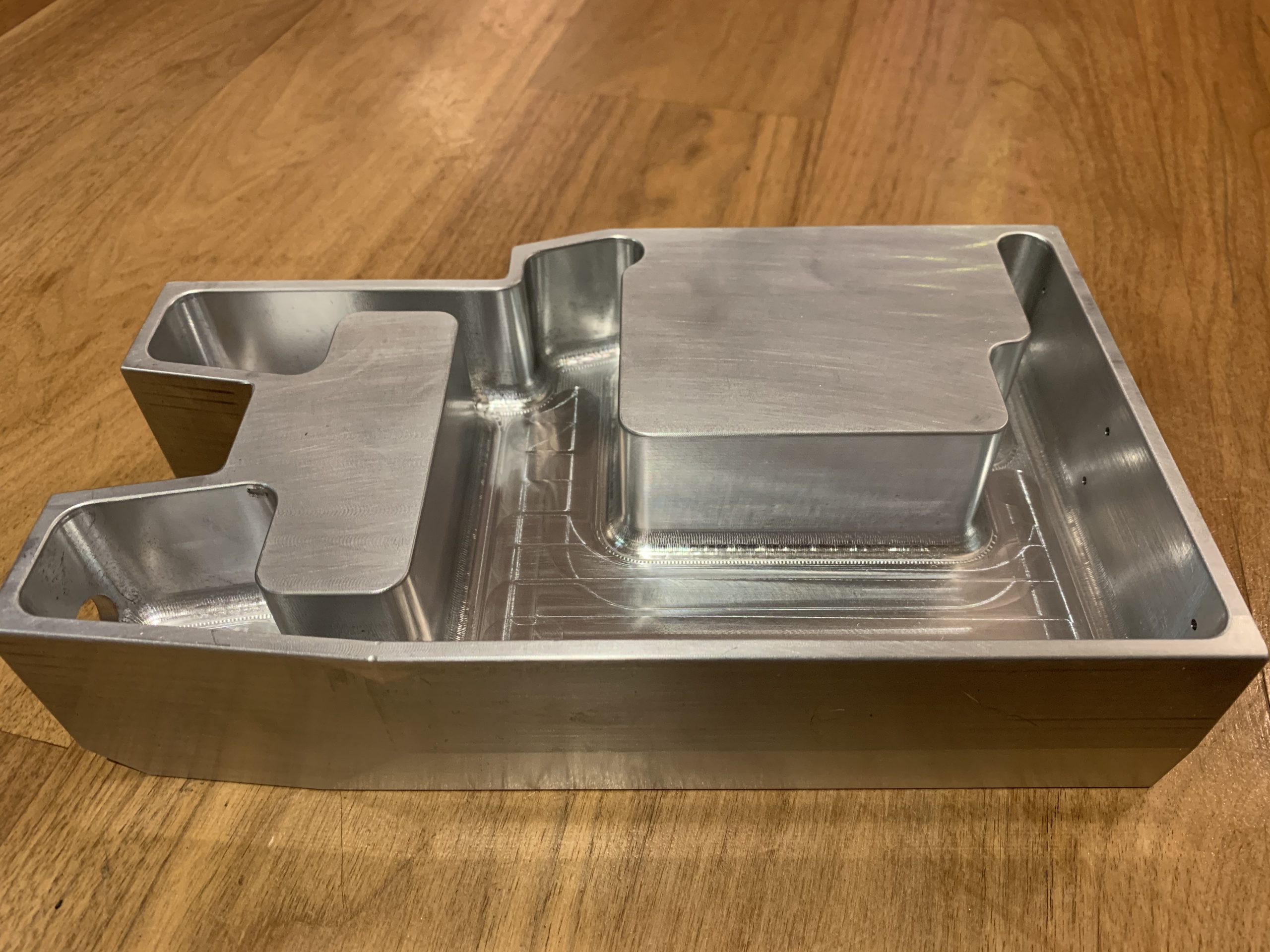

Now in Version 3 we have listened to customer feedback and have hollowed out the rear of the boxes to make them much lighter. There are also other subtle changes that mimic the irregularities seen with the A-Car flux boxes along with a few other small tweaks to improve the accuracy. We still recommend that the front boxes be secured into position with M6 bolts and larger “penny” washers drilled through the front wings. The flux boxes on the roof of the car are even easier to secure in place with just 3M VHB tape (after thoroughly degreasing the area).

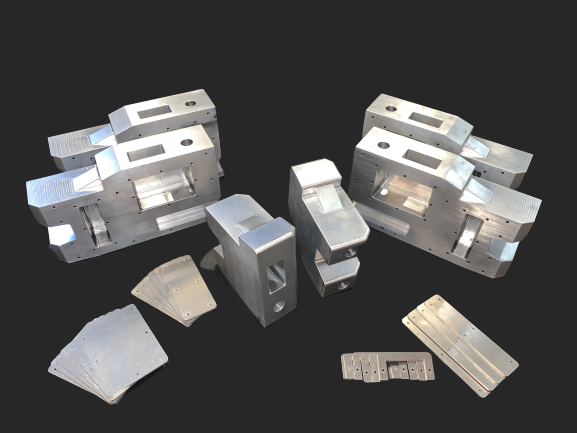

You will receive a full set of 6 flux boxes (4 Large, 2 small) along with a full set of laser cut “plates”.

  • Material: Aluminium
  • Finish: Unpainted. You will need to paint these the correct colour (if you don’t fall in love with the raw aluminium finish!)
  • Part Location: Attaches to Front wings, Roof “T” section, and either side of the exhaust pipes.
  • Additional parts included: Laser cut Front plates, Side plates and Mole Richardson plates.





About DTMProps Stock Levels

Immediate Ship – This means we have the item in stock and ready to ship directly to you without delay.

Available for Production – This means that we are accepting order requests for this item. As soon as we have a sufficient number of orders we will begin production of this item. It can take anything from 2-4 weeks, sometimes longer for an item to go into production. This is the only cost effective way to produce these items.

Not in production at this time –  We may be unable to obtain the material required to manufacture this item at the current time, or lack the tooling to do so. Please contact us for further info.

Additional information

Weight 30 kg
